THREE TYPES OF
GOODS ELEVATOR
The right choice depends on what’s being moved, how often, and whether it travels alone or with an operator.

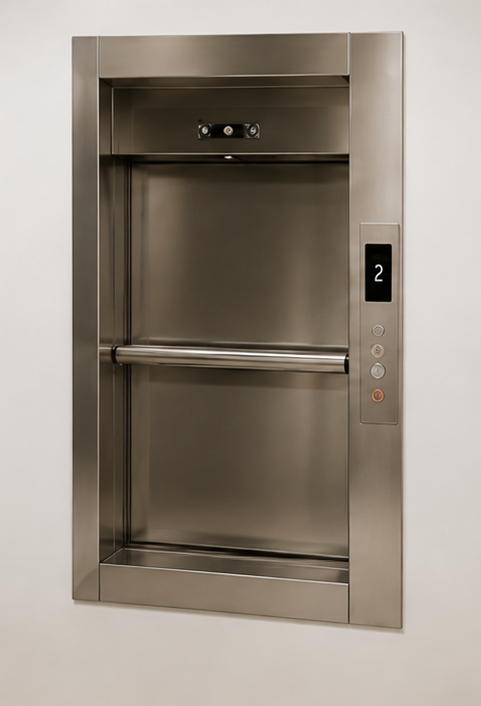

DUMBWAITER
ELEVATORS
Small, unaccompanied lifts that move food trays, documents, laundry or small stock between floors in a closed shaft. The small footprint keeps installation cost and space requirements down.
Best for: hotels, restaurants, hospitals, multi-storey homes

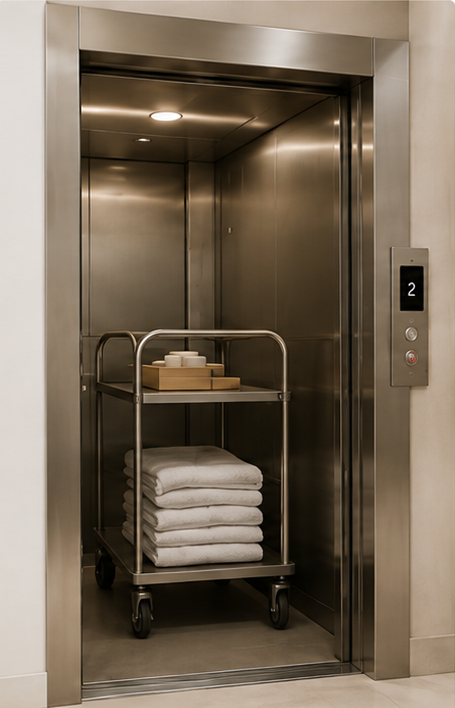

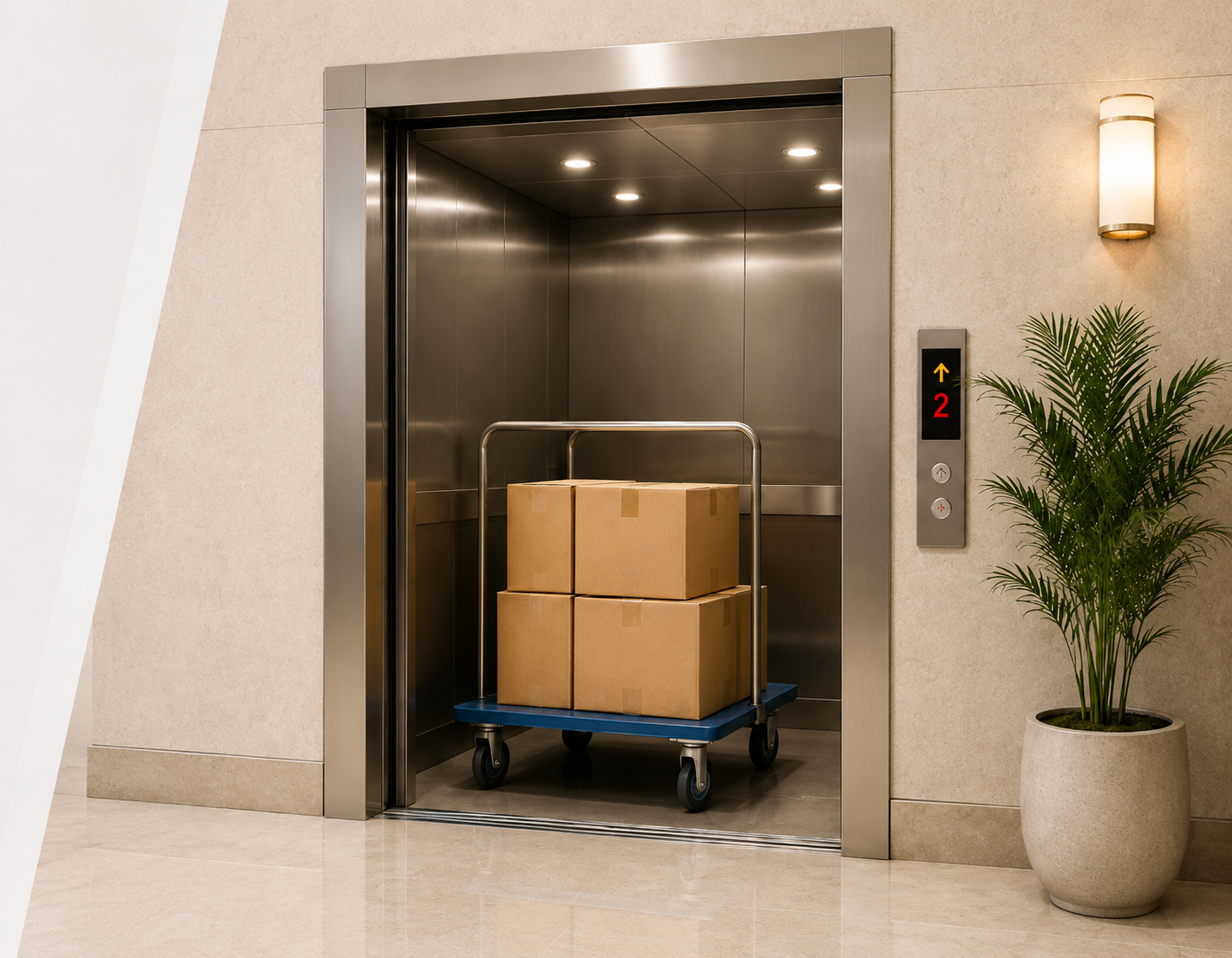

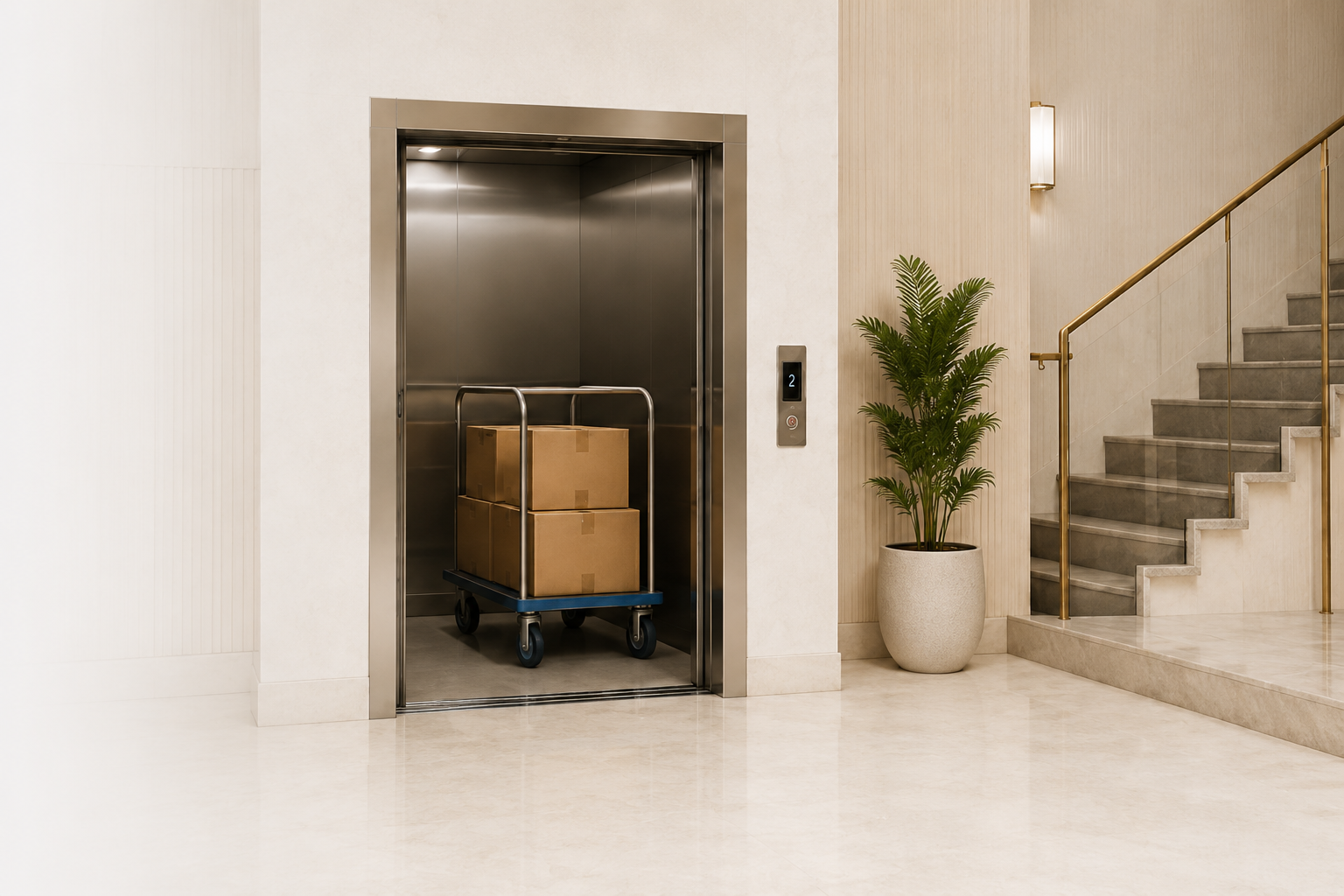

TROLLEY SERVICE
ELEVATORS
A larger, finished cabin built for wheeled carts: housekeeping trolleys, hospital supply carts, retail stock carts — with an operator riding along to push the load in and out at each floor.
Best for: hotels, hospitals, retail back-of-house

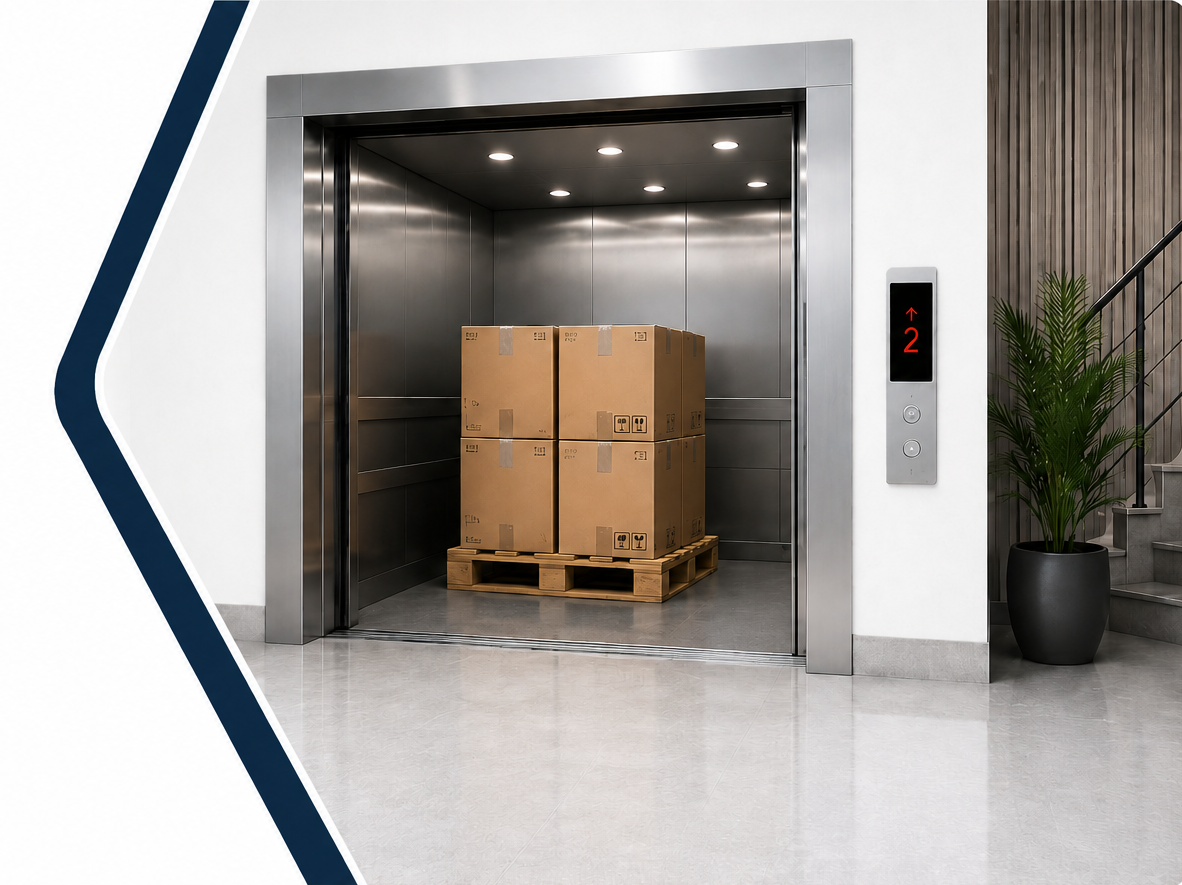

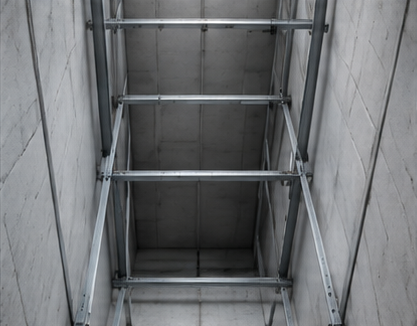

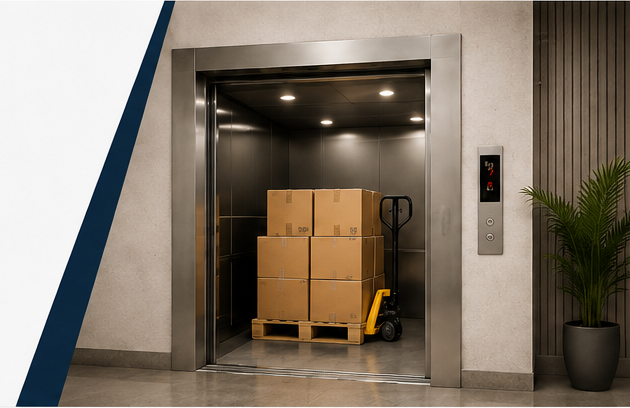

COLUMN FREIGHT
ELEVATORS

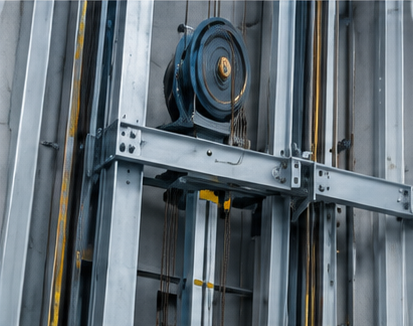

Built around a reinforced structural frame with two or more guide columns, for repeated rough daily use: pallets, machinery, construction materials — with heavier-gauge components throughout.
Best for: construction sites, warehouses, manufacturing
BEFORE
YOU BUY
WHAT TO CHECK BEFORE
CHOOSING A GOODS ELEVATOR
Sizing a lift correctly starts with the job it needs to do, not the largest or most expensive option on the list.
LOAD
The single most important spec. Oversizing adds unnecessary cost; undersizing creates a safety risk and shortens the equipment’s working life.
SIZE
The car needs to physically fit what’s being loaded — trolley, pallet or machine — with enough clearance to load and unload safely.
TRAVEL
More stops mean more shaft length, more wiring, and often a different drive system than a short two- or three-floor lift.

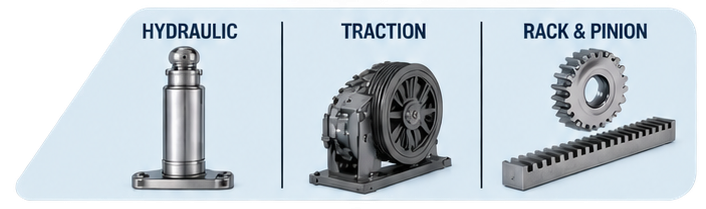

DRIVE
Hydraulic suits lower-rise, high-capacity jobs; traction suits taller buildings; rack-and-pinion suits construction sites needing quick install and relocation.
DOOR
Vertical bi-parting doors are standard on freight elevators; they don’t intrude into the loading area the way a swing door does.
SHAFT
Dimensions depend on load, speed and travel height, which is why a site survey always comes before a final specification.
INDUSTRIES THAT
DEPEND ON GOODS ELEVATORS
Built to move more than just goods. Goods elevators power the industries that keep the world moving.
Moves materials, equipment and tools between floors during the build itself.
LOGISTICS
Moves pallets and stock between storage levels quickly and efficiently.
Room-service trolleys, linen and supplies between kitchen and floors without crossing guest corridors.
Meal supplies, equipment and materials between hospital wards and departments.
Moves stock between the sales floor and back-of-house storage.
Heavier loads — production materials, parts and finished goods between production levels.
SAFETY CONSIDERATIONS
A goods elevator carries real weight, often in a harsher environment than a typical commercial building. Regular inspection matters as much as the installation itself.
OVERLOAD
SENSORS
Prevent the lift from operating past its rated capacity.
DOOR & GATE
INTERLOCKS
Stop the car from moving unless the shaft is properly closed.

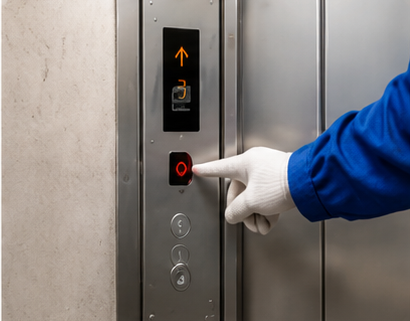

EMERGENCY
STOP CONTROLS
Immediate manual stop, accessible at every landing and in the car.
BACKUP
POWER
Keeps the lift and its safety systems functional through a power interruption.
SCHEDULED
INSPECTION
Doors, ropes and brakes wear fastest under repeated heavy loading — scheduled checks catch it early.
HOW ECOLIFT INSTALLS
A GOODS ELEVATOR
From site survey to testing and handover, we handle every step with precision, safety and minimal disruption to your operations.
SITE SURVEY
Load requirements, shaft dimensions and floor count are assessed on-site.
SHAFT & PIT PREP
The shaft and pit are prepared to match the chosen lift type and drive system.
INSTALLATION
Structural and mechanical components are installed, and the control system is wired.

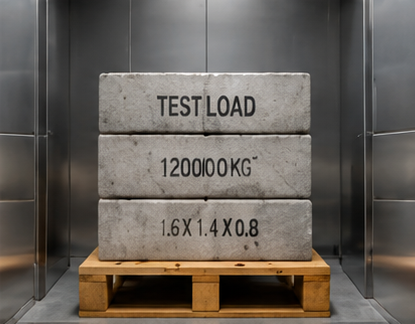

LOAD TESTING
The lift is loaded and inspected to confirm safe operation at rated capacity.
HANDOVER & TRAINING
Our technicians walk the client through operation and basic upkeep.
MAINTENANCE &
MODERNIZATION
ONGOING MAINTENANCE
A goods elevator carrying heavy or repeated loads needs a servicing schedule built around that usage — covering the doors, cables, brakes and drive components most exposed to wear, before they turn into breakdowns that stop a site mid-operation.
UPGRADE MODERNIZATION
For older goods lifts that are still structurally sound but running on outdated controls, modernization upgrades safety and reliability without rebuilding the shaft — often more cost-effective than full replacement.
WHY ECOLIFT
BUILT ON 50 YEARS OF VERTICAL
TRANSPORTATION IN LEBANON
Being based in Beirut means our team can reach sites across the country for scheduled maintenance and emergency callouts, with every installation sized to the specific load, layout, and usage pattern of the building.
